320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication

    Buy cheap 320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication from wholesalers

    Buy cheap 320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication from wholesalers
    • Buy cheap 320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication from wholesalers

    320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication

    Ask Lasest Price
    Brand Name : YM
    Model Number : YM-32F160-100S2P-M1
    Certification : MSDS, CE, UN38.3, ISO9001, ISO14001
    Price : Negotiable
    Payment Terms : Paypal, Payoneer, T/T, L/C
    Supply Ability : 100,000 units per year
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication


    Description:

    Lithium ion batteries, if classified by positive chemistry material, are mainly divided into 2 types. That is, NiMnCo batteries and LiFePO4 batteries.

    NiMnCo batteries have many advantages as power batteries in many aspects over LiFePO4 batteries. What's why most electric vehicles use NiMnCo batteries. Tesla use NiCoAl batteries. China top EV manufacturers most use NiMnCo batteries.


    YM lithium battery packs all use EV level grade A lithium ion cells from China top cell manufacturers such as EVE, CATL, CALB, etc or foreign battery brand such as Samsung, LG,Panasonic, A123, etc if project requrirements need.

    BMS with CAN communication is purchased from China top BMS manufacturers. BMS with RS485 communication or without communication can be developped by ourselves.

    Advanced battery packing production lines for both cylindrical cells and prismatic cells are equipped with. Annual production capacity can be 2GWh.


    This 320V 160AH lithium ion battery pack is LiFePO4 battery pack. As the battery application is electric tractor, there is not much dimension limit but requires high safety and long cycle life. To define the battery voltage at 320V is due to that the driving motor is at 30KW power. 30KW motor is normally at high voltage. To match the motor, battery need to be high voltage as well. And high voltage is better for safety and heat dissipation. CAN communcation is needed as customer requires battery info shown on the dashboard.


    YM Power Tech Limited focus on custom made lithium battery packs for different electric vehicles. Welcome to Email us or Whatsapp online chat!


    Quick Detail:

    1. Designed as power batteries for large electric vehicles, such as electric tractor, electric bus, etc

    2. High quality EV level grade A LFP lithium battery cells from China top cell manufacturers are used

    3. Reliable BMS to protect the whole battery pack

    4. High discharge rate up to 1C constant / 2C peak

    5. Support CAN Communication


    Specifications:

    Nominal voltage320V
    Nominal capacity160AH
    Cell typeNCM
    Cell configuration3.2V 80ah cell via 100P2S
    HousingSheet metal
    Weightapprox 500kg
    Dimensions1060*685*(230*2)mm
    Constant discharging current100A
    Peak discharging current200A
    charging current20A
    Heating methodNO
    Cooling methodNatural cooling
    Sealing rateIP65

    320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication

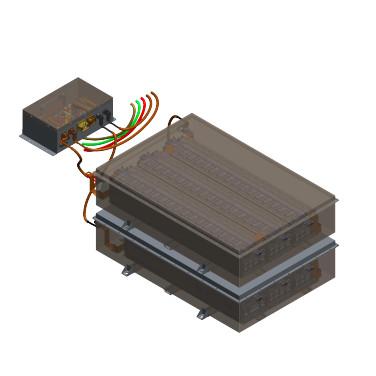

    Battery Pack 1


    Battery Pack 2


    PDU (Power Distribution Unit)


    Applications:

    Electric tractor, electric bus, electric passenger car, etc


    Product advantages:

    a. High quality cells from China top cell manufacturers such as EVE, LISHEN, TESSON, GOTION,etc or foreign cell brands such as Sumsang, Panasonic, LG, etc. All cells are MSDS, UN38.3, CE, UL certified.

    b. PCB / BMS are from China top PCB/BMS manufacturers.

    c. All battery packs are rational designed and well made with advanced packing technology. And our price is very cost-effective.

    320V 160AH EV Electric Tractor Lithium Ion Battery Pack CAN Communication


    Company advantages:

    a- Good Quality Management:
    Our Pack production base for mass order has passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications.

    b- Advanced hardware and software facilities

    Equip 4 automatic battery packing lines with Kama robots and MES intelligent tracking system.

    c- Technical advantage:

    Our technical team members are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences and excellent R&D abilities.
