7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack

    Buy cheap 7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack from wholesalers

    Buy cheap 7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack from wholesalers
    • Buy cheap 7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack from wholesalers
    • Buy cheap 7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack from wholesalers
    • Buy cheap 7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack from wholesalers
    • Buy cheap 7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack from wholesalers
    • Buy cheap 7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack from wholesalers

    7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack

    Ask Lasest Price
    Brand Name : YM
    Model Number : YMK7.5
    Certification : MSDS, CE, UN38.3, IEC62109
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100,000 units per year
    Delivery Time : 14-21 working days
    • Product Details
    • Company Profile

    7.5KW Powertrain Kit Driving Motor Kit With 10KWH Lithium Ion Battery Pack


    Quick Detail:


    1. Integrated powertrain system for pure electric vehicles, including motor, motor controller and lithium batteries

    2. High quality grade A Lithium NCM batteries are used

    3. high power PMSM motor is equipped

    4. Reliable motor controller is adopted


    Description:

    7.5KW EV Powertrain Kit At 72V, Including Motor, Motor Controller And Lithium Battery Pack


    Our technical team have devoted into new energy electric vehicles for more than 10 years. As we all know, the motor, motor controller and lithium batteries are the three key components of a electric car.

    We can provide electric AC motor, motor controller (both ac motor controller and bldc motor controller), dashboard, dc-dc converter, etc.
    Our driving system is suitable for various types of electric vehicles, like golf cart, electric tricycle, electric tuk tuk, electric atv or utv, electric car (both for cargo or passenger).

    This 15KW ev powertrain system has been applied in electric vehicle powertrain system are especially for those who want to retrofit their fuel cars to EVs.


    Electric Motor


    Motor controller


    Lithium Battery Pack


    Applications:

    Electric vehicles, etc


    Specifications:


    Electric Motor

    Continuous Working Watts7.5KW
    Peak Working Watts15KW
    Rated Torque24N.m
    Peak Torque105N.m
    Rated RPM3000
    Max. RPM6000
    IP levelIP56
    Insulation GradeH
    Weight28kg

    Motor Controller

    Rated input voltage72V DC
    Max. output current400A DC
    Rated Capacity12KVA
    Max. Capacity24KVA
    IP levelIP66
    Weight5.4KG

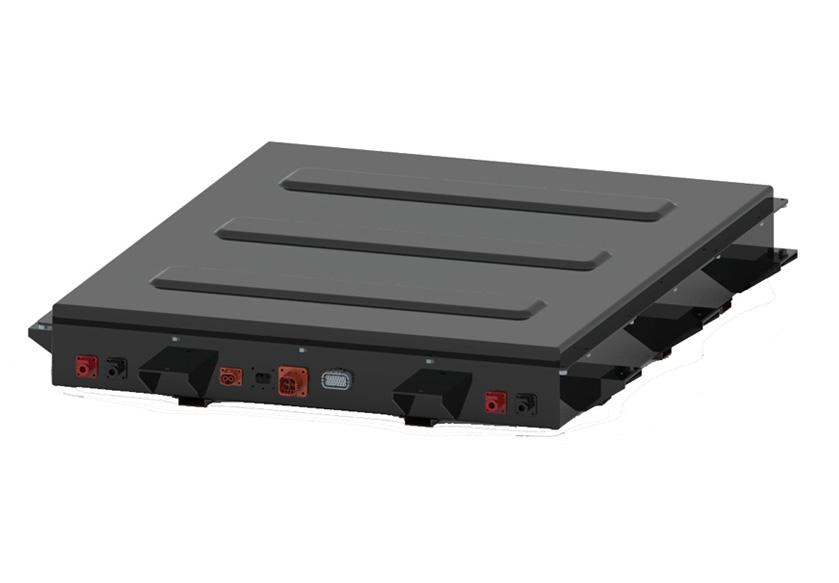

    Lithium Battery Pack

    Rated Voltage72V
    Rated Capacity11.5KWh / 160Ah
    Rated Discharging Current160A
    Peak Discharging Current300A
    Rated Charging Current35A
    Weight100KG
    IP gradeIP65

    Competitive Advantage:

    1-Good Quality Management:
    Our Pack production base for mass order has passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications. And we have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center. We always do daily production as per these systems.

    2-Advanced hardware and software facilities

    We established high-precision three-coordinate measuring machines, projectors, universal material tensile machines, and other measuring instruments to ensure the effective quality data.

    3-Technical advantages:

    Our technical team are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences. They have excellent R&D abilities. We also have the ability to develop BMS by ourselves.

    4-Product advantage:

    Motor and motor controller are reliable and extenstively tested before shipment.

    The lithium battery pack are of high quality.

    a. The cells we use are domestic high-quality cellsfrom China big cell manufacturers or imported cells from Sumsang, Panasonic.LG, etc .

    b. BMS are realiable. BMS within 24S, we develop by ourselves. BMS above 24S, we purchase from China top 3 BMS manufacturers.

    c. Advanced battery pack assembly technologies ensures the finished battery packs are of high quality.


    Tag:

    7.5KW powertrain kit, 7.5kw motor kit, 72v 10kwh lithium battery pack
