IFR26650-38A LFP 26650 3.2V 3800mah Lithium Ion Battery Cells

    Buy cheap IFR26650-38A LFP 26650 3.2V 3800mah Lithium Ion Battery Cells from wholesalers

    Buy cheap IFR26650-38A LFP 26650 3.2V 3800mah Lithium Ion Battery Cells from wholesalers
    • Buy cheap IFR26650-38A LFP 26650 3.2V 3800mah Lithium Ion Battery Cells from wholesalers
    • Buy cheap IFR26650-38A LFP 26650 3.2V 3800mah Lithium Ion Battery Cells from wholesalers

    IFR26650-38A LFP 26650 3.2V 3800mah Lithium Ion Battery Cells

    Ask Lasest Price
    Brand Name : YM
    Model Number : IFR26650-38A
    Certification : MSDS, CE, UN38.3, ISO9001
    Price : US$2.2-US$3.0
    Payment Terms : Paypal, Western Union T/T, L/C
    Supply Ability : 100000 pcs per day
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    IFR26650-38A LFP 26650 3.2V 3800mah Lithium Ion Battery Cells


    Quick Detail:

    1- Long cycle life: 2000+ cycles @100%DOD, 4000+ cycles @80%

    2- Support continuous discharge rate of 1.5C and charge rate of 1C

    3- excellent cell consistency performance

    4- widely applied for solar / wind energy storage system

    5- high safety performace: no explosion nor fire


    Description:

    IFR26650-38A 3.2V 3800mAh LiFePO4(LFP) lithium iron phosphate battery cell is high energy li-ion battery with high safety, high consistency and high reliability characteristics which has been passed The National Mandatory Inspection and widely used in electric motorcycle, elctric tricycle, AGV, power station, house-hold energy storage system, PV street light, etc.


    • Specifications:

    • Nominal voltage

      3.2V

      Nominal capacity

      3800mAh

      Minimum capacity

      3750mah

      Cell type

      LiFePO4

      Resistance

      <25mΩ

      Discharging cut-off voltage

      2.0V

      Charging upper limit voltage

      3.65V

      Max. charging current

      1C

      Standard discharge current

      0.5C

      Max. continuous discharging current

      1.5C

      Dimensions

      Diameter ≤26.3mm

      Height: 65.2±0.3mm

      Weight

      approx. 88g

      Operation temperature

      0~45


      -20~60

      Storage temperature

      -20~45℃

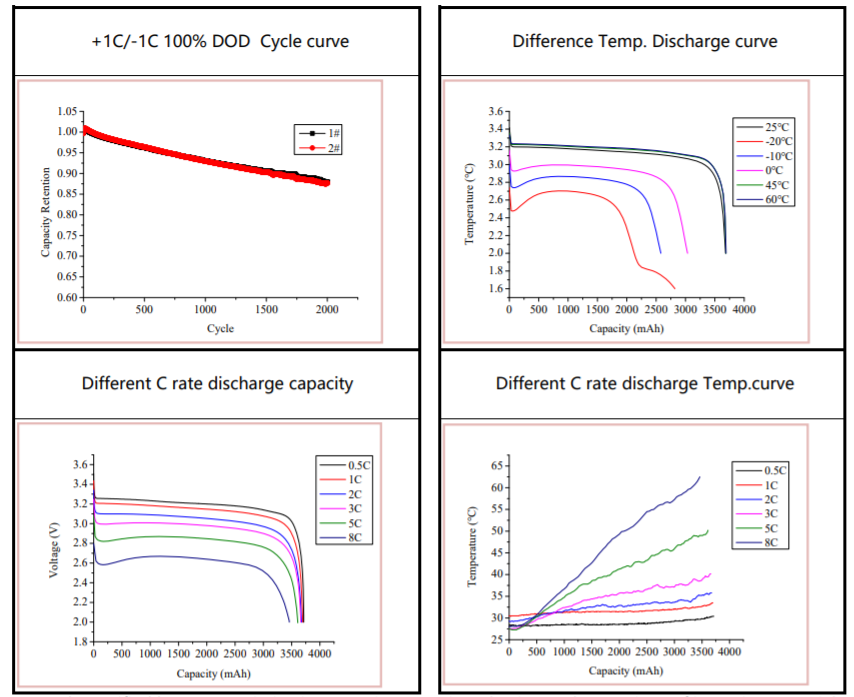

    Cell Characteristics Curves


    Applications:

    Solar power System, solar Street light, etc.


    Competitive Advantages:

    Company advantages:

    1-Good Quality Management:
    Our Pack production base for mass order have passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications. And we have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center. We always do daily production as per these systems.

    2-Advanced hardware and software facilities

    We established high-precision three-coordinate measuring machines, projectors, universal material tensile machines, and other measuring instruments to ensure the effective quality data.

    3-Technical advantages:

    Our technical team are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences. They have excellent R&D abilities. We also have the ability to develop BMS by ourselves.


    Product advantages:

    Our products are of high quality because

    The cells we use are domestic high-quality cellsfrom China big cell manufacturers or imported cells from Sumsang, Panasonic.LG, etc .

    BMS are realiable. BMS within 24S, we develop by ourselves. BMS above 24S, we purchase from China top 3 BMS manufacturers.

    Advanced battery pack assembly technologies ensures the finished battery packs are of high quality.


    Tag:

    26650 lifepo4 cell, 26650 3800mah LFP cell, 3.2v 26650 cell, lithium ion battery cell
