Quick Detail:

1- High discharge rate of 10C

2- fast charge rate of 5C

3- High usable energy over a wide state of charge(SOC) range

4- Excellent abuse tolerance and superior calendar and cycle life from A123's patented Nanophosphate lithium ion chemistry

5- High power with over 2,400W/kg and 4,500W/L

Description:

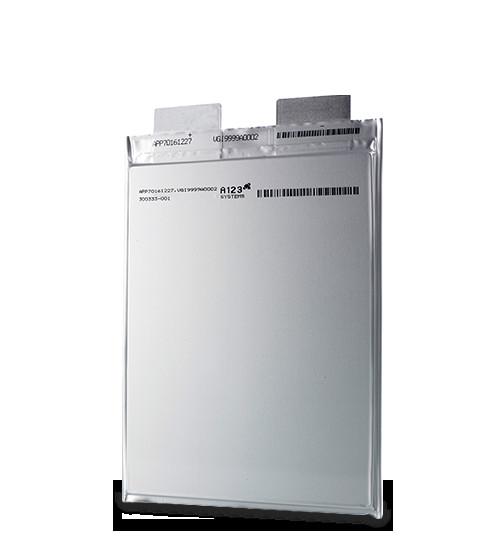

30C Discharge Rate A123 20AH LiFePO4 Lithium Ion Battery Cell , 3.2V LFP Pouch Type AMP20M1HD-A

Note: 100% genuine deep cycle lipo battery lifepo4 A123 20Ah prismatic pouch cell!

• Specifications:

•


  Nominal voltage	3.3V
  Nominal capacity	20Ah
  Cell type	Li-FePO4 prismatic pouch
  Resistance	＜2mΩ
  Max. continuous charging current	5C
  Max. continuous discharging current	10C
  Pluse discharging current	60C (10s)
  energy density	247Wh/L
  Dimensions	7*160*227mm
  Weight	approx. 496g

•




Applications:

Passenger Vehicles, commercial vehicles, PHEV/EV/Racing car, electric motorcycle, etc

Competitive Advantages:

Company advantages:

1-Good Quality Management:
Our Pack production base for mass order have passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications. And we have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center. We always do daily production as per these systems.

2-Advanced hardware and software facilities

We established high-precision three-coordinate measuring machines, projectors, universal material tensile machines, and other measuring instruments to ensure the effective quality data.

3-Technical advantages:

Our technical team are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences. They have excellent R&D abilities. We also have the ability to develop BMS by ourselves.

Product advantages:

Our products are of high quality because

The cells we use are domestic high-quality cellsfrom China big cell manufacturers or imported cells from Sumsang, Panasonic.LG, etc .

BMS are realiable. BMS within 24S, we develop by ourselves. BMS above 24S, we purchase from China top 3 BMS manufacturers.

Advanced battery pack assembly technologies ensures the finished battery packs are of high quality.
