Quick Detail:

1- High discharge rate of 30C

2- fast charge rate of 5C

3- High usable energy over a wide state of charge(SOC) range

4- Excellent abuse tolerance and superior calendar and cycle life from A123's patented Nanophosphate lithium ion chemistry

5- High power with over 4000W/kg

Description:

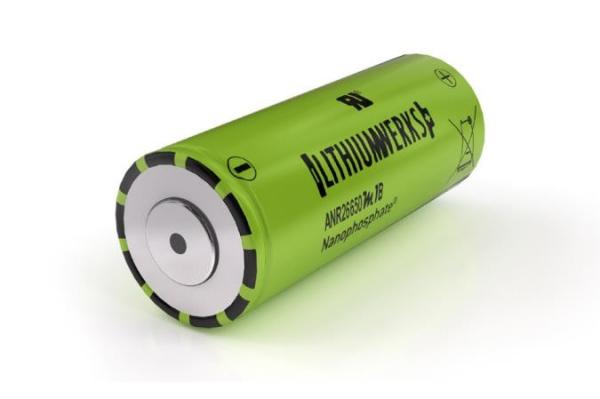

A123 25C Discharge Rate / 4C Charge Rate 2.5AH 26650 LiFePO4 Battery Cell AMP20M1HD-A

Note: A123 cylindrical cells production factory was purchased by Lithium Werks since 2019. So the latest cells are named Lithium Werks.

Lithium Werks’ 26650 cells are capable of delivering very high power due to its use of patented Nanophosphate ® battery technology. Based on lithium iron phosphate chemistry (LiFePO4 ), the cells are inherently safe over a wide range of temperatures and conditions. Whether the application requires outstanding cycle life or stable float reliability, the Lithium Werks’ 26650 cells are suitable for a wide variety of power, pulse, or stand-by applications.

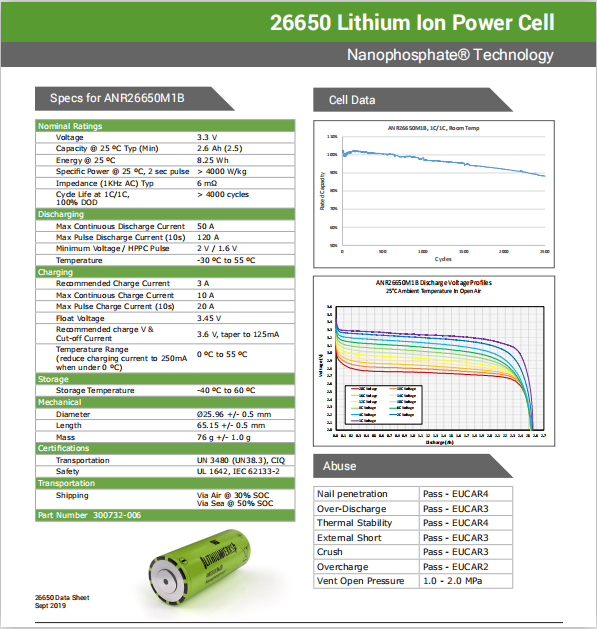

• Specifications:

• Nominal voltage	3.3V
  Nominal capacity	2.5Ah
  Cell type	Li-FePO4 cylindrical 26650
  Resistance	＜6mΩ
  Max. continuous charging current	4C
  Max. continuous discharging current	25C
  Pluse discharging current	48C (10s)
  Power	4000Wh/kg
  Weight	approx. 76g
  Cycle life	4000+ cycles
  Certification For Safety	UL1642 IEC62133-2
  Certification For Transportation	UN38.3 CIQ
  Other certifiations	BIS

•


Applications:

Passenger Vehicles, commercial vehicles, PHEV/EV/Racing car, electric motorcycle, etc

Competitive Advantages:

Company advantages:

1-Good Quality Management:
Our Pack production base for mass order have passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications. And we have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center. We always do daily production as per these systems.

2-Advanced hardware and software facilities

We established high-precision three-coordinate measuring machines, projectors, universal material tensile machines, and other measuring instruments to ensure the effective quality data.

3-Technical advantages:

Our technical team are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences. They have excellent R&D abilities. We also have the ability to develop BMS by ourselves.

Product advantages:

Our products are of high quality because

The cells we use are domestic high-quality cellsfrom China big cell manufacturers or imported cells from Sumsang, Panasonic.LG, etc .

BMS are realiable. BMS within 24S, we develop by ourselves. BMS above 24S, we purchase from China top 3 BMS manufacturers.

Advanced battery pack assembly technologies ensures the finished battery packs are of high quality.
