Quick Detail:

• Discharge port is at the BOTTOM and the battery base is 121*86mm
• Samsung 18650 lithium battery cells are used
• quality BMS monitors each cell for high reliability
• Compact in size and light in weight
• Long cycle life : 1000+ cycles---5 times of Lead Acid and 2 times of NiMH /Ni-Cd

Description:

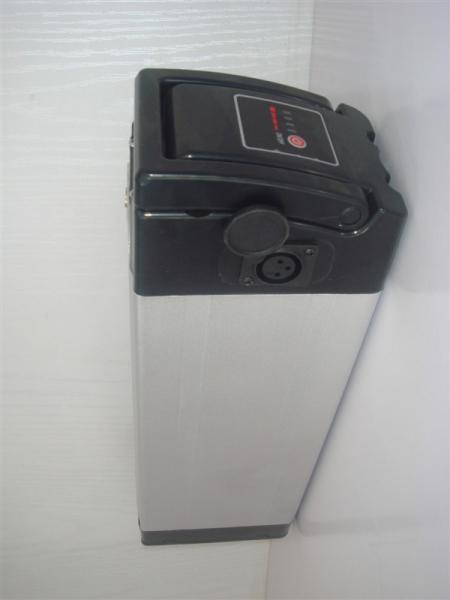

Bottom Discharge 36V 15AH Mountain E Bike Lithium Ion Battery Pack With Samsung 18650 Cell YM109

Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
Lithium battery replacing Lead acid battery is an inevitable trend.

Imported cells from Samsung, LG or Panasonic are all optional.

Or Cells from China domestic famous cell manufacturers are more cost-effective.



Specifications:

Items		Technical Parameters	Remarks
Standard voltage		36V
Standard capacity		15Ah	0.2C5A discharge
Resistance		＜110mΩ
Standard charging voltage		43.6V
Standard charge current		2A
Max charge current		5A
Discharging cut-off voltage		30V
Standard discharge current		5A
Max discharge current		10A
Over-current protection		YES
Dimensions		battey base: 86*121mm length: 275mm (can be customized made)
Weight		＜5Kg
Charge port discharge port
Charing mode(CC/CV)	standard	0.2C×6 hrs.(reference value)
	fast	0.5C×2.5 hrs.(reference value)
Working temperature range	charge	0℃~+45℃
	discharge	-20℃~+45℃
Storage Temperature Range		-40℃~+40℃
Storage environment humidity		5%～90% RH

All models for alunimum case e bike batteries are as follows:

Remarks:
Battery base can't be changed but the height can be changed.
Battery voltage can be changed from 24V - 48V.
Both LiFePO4 and NMC batteries can be made.

FAQ:
Q1: How long is the lead time after the order is placed?
Usually the lead time for sample battery is within 14 days. For mass order, the lead time is about 14-28 days. The accurate lead time is based on the order qty.
Q2: What is your quality control process?
We are certified with ISO-9001, and strictly follow the ISO procedures. We do 100% full test for all batteries before the goods is delivered.
Q3: What Certificates do you have?
We have got MSDS, UN38.3, and CE certificates for our products. We also have ISO9001 certificate for our quality control system.
Q4: How about your after-sale service?
We offer 1 year warranty for MNC batteries and 2 years for LiFePO4 batteries or 0.5% spare parts to buy out the warranty. After the warranty period, paid maintenance service will be offered.
Q5: What about the payment?
We accept T/T and L/C payment methods for large-quantity orders, and Paypal or Western Union for samples or small-quantity orders.



Tag:
36V 15ah e bike battery, 36v 15ah samsung battery, 36V 15ah lithium ion battery

YM Power Tech Limited is a professional lithium-ion batteries supplier that offers custom-made services for different specifications of lithium-ion battery packs and system integration. Of course, lithium-ion cells, BMS chargers, etc can be supplied as well.

YM is our brand. YM has two meanings. That is Yoctometer(ym) Tech Powers Yottameter(Ym). Although Yoctometer tech now is hard to achieve (the most advanced level now is Nanotech), powering yottameter is much possible. Our aim is to use the most advanced technology to make the best lithium batteries.

YM's lithium batteries are widely used as power batteries for different kinds of electric vehicles, such as electric scooters, electric cars, electric motorcycles, AGV, golf carts, electric wheelchairs, etc. Besides, YM lithium batteries are also applied as storage batteries, such as for home solar storage systems, backup power supply, UPS, solar street light, RV, etc.

Except for pure lithium batteries, YM also offers solutions to the complete EV powertrain kit and the complete energy storage system, including not only lithium batteries but also motors, motor controllers, charge controllers, inverters, etc. OEM & ODM services are offered.

YM's products have won many national invention patents and some products have passed the CE certificate. At present, YM has cooperated with many low-speed electric vehicle manufacturers in China.

By 2019, YM has built an R&D center, domestic sales office, and production factory. Production factory covers an area of 2000+ square meters with 1 manual production lines and 1 automatic production line. The annual production capacity can reach 1GWh. The factory has got ISO9001 quality management system certified and ISO14001 and OHSAS 18001 certified.

In 2020, YM started to develop overseas business. It is believed that YM will do a good job in the international market!
