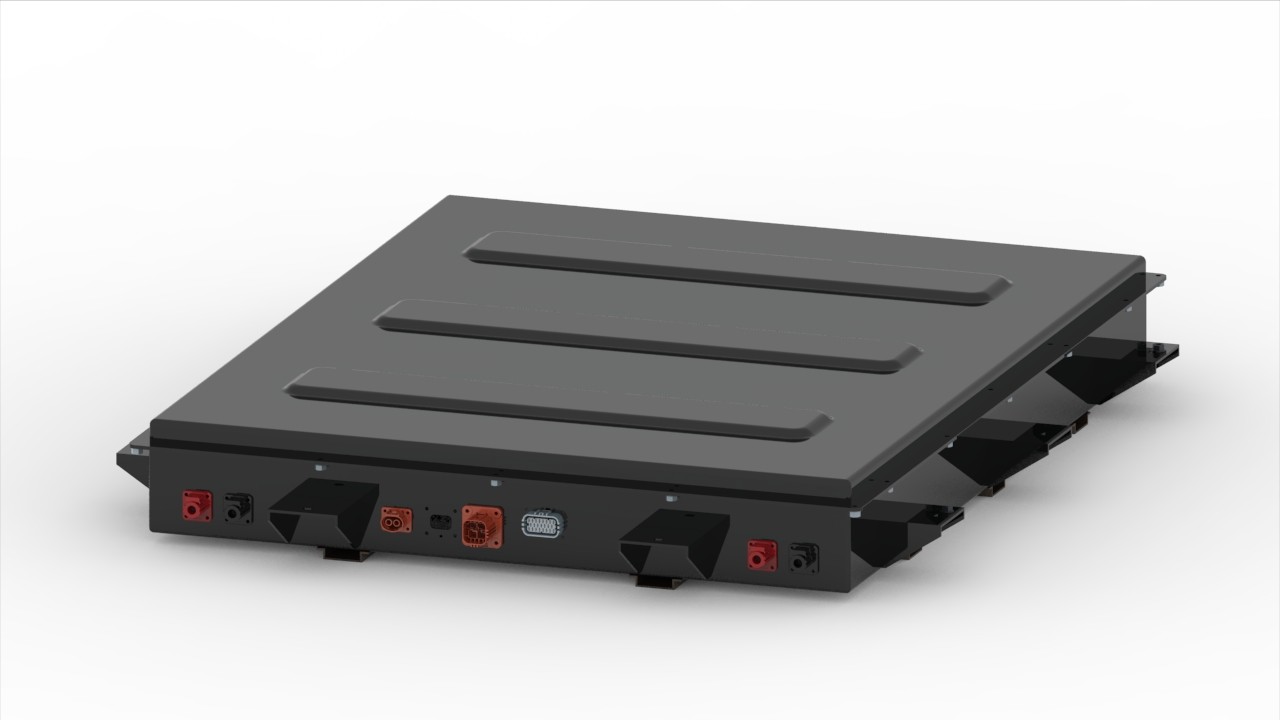

TS16949 Li-NMC 40KWH 144V 300AH Electric Vehicle Battery Pack

    Buy cheap TS16949 Li-NMC 40KWH 144V 300AH Electric Vehicle Battery Pack from wholesalers

    Buy cheap TS16949 Li-NMC 40KWH 144V 300AH Electric Vehicle Battery Pack from wholesalers
    • Buy cheap TS16949 Li-NMC 40KWH 144V 300AH Electric Vehicle Battery Pack from wholesalers

    TS16949 Li-NMC 40KWH 144V 300AH Electric Vehicle Battery Pack

    Ask Lasest Price
    Brand Name : YM
    Model Number : YM-144T300-M1
    Certification : MSDS, CE, UN38.3, TS16949
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100,000 units per year
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    TS16949 Li-NMC 40KWH 144V 300AH Electric Vehicle Battery Pack


    Quick Detail:


    1. Suitable for A0 electric passenger car

    2. High quality grade A Lithium NMC cells are used

    3. Reliable and precise BMS to protect the battery and monitor the battery status

    4.IP67 protection grade

    5. 800+ cycle lifes


    Description:

    A0 Electric Car Lithium Ion Battery Pack 144V 300AH 40KWH NMC Batteries With 26800 6000mah Cells


    This battery pack is designed for A0 electric passenger car. It consist of 2080pcs 3.6v 2500mah cells. Pack assembly is via cells →modules →packs. NMC lithium battery has the advantages of high energy density, lighter in weight and better low temperature performance than LiFePO4 lithium battery.


    Specifications:

    Nominal voltage144V
    Nominal capacity300AH
    ChemistryNMC
    Cell model3.6V 6000mah cell
    Resistance≤100mΩ
    HousingVanished iron housing
    Weightapprox 340kg
    Dimensionscustom design
    Rated discharging current100A
    Ratedcharging current50A
    Heating methodNo
    Cooling methodNatural cooling
    Sealing ratingIP67

    TS16949 Li-NMC 40KWH 144V 300AH Electric Vehicle Battery Pack


    Applications:

    A0 electric passenger car, etc


    Competitive Advantages:

    Product advantages:

    a. The cells we use are domestic high-quality cellsfrom China big cell manufacturers or imported cells from Sumsang, Panasonic.LG, etc .

    b. BMS are realiable. BMS within 24S, we develop by ourselves. BMS above 24S, we purchase from China top 3 BMS manufacturers.

    c. Advanced battery pack assembly technologies ensures the finished battery packs are of high quality.


    Company advantages:

    a- Quality Management:

    Sample factory has passed ISO9001 Quality Management System certification.
    Mass production base has passed TS16949 Quality System, ISO14001 Environmental System and OHSAS18001 system certifications. And we have passed the test of the National Motor Vehicle Product Quality Supervision and Inspection Center. We always do daily production as per these systems.

    b- Advanced hardware and software facilities

    We established high-precision three-coordinate measuring machines, projectors, universal material tensile machines, and other measuring instruments to ensure the effective quality data.

    c- Technical advantage:

    Our technical team are all from China famous electric vehicle manufacturers. They all have more than 10 years' industry experiences. They have excellent R&D abilities. We also have the ability to develop BMS by ourselves.
